Description

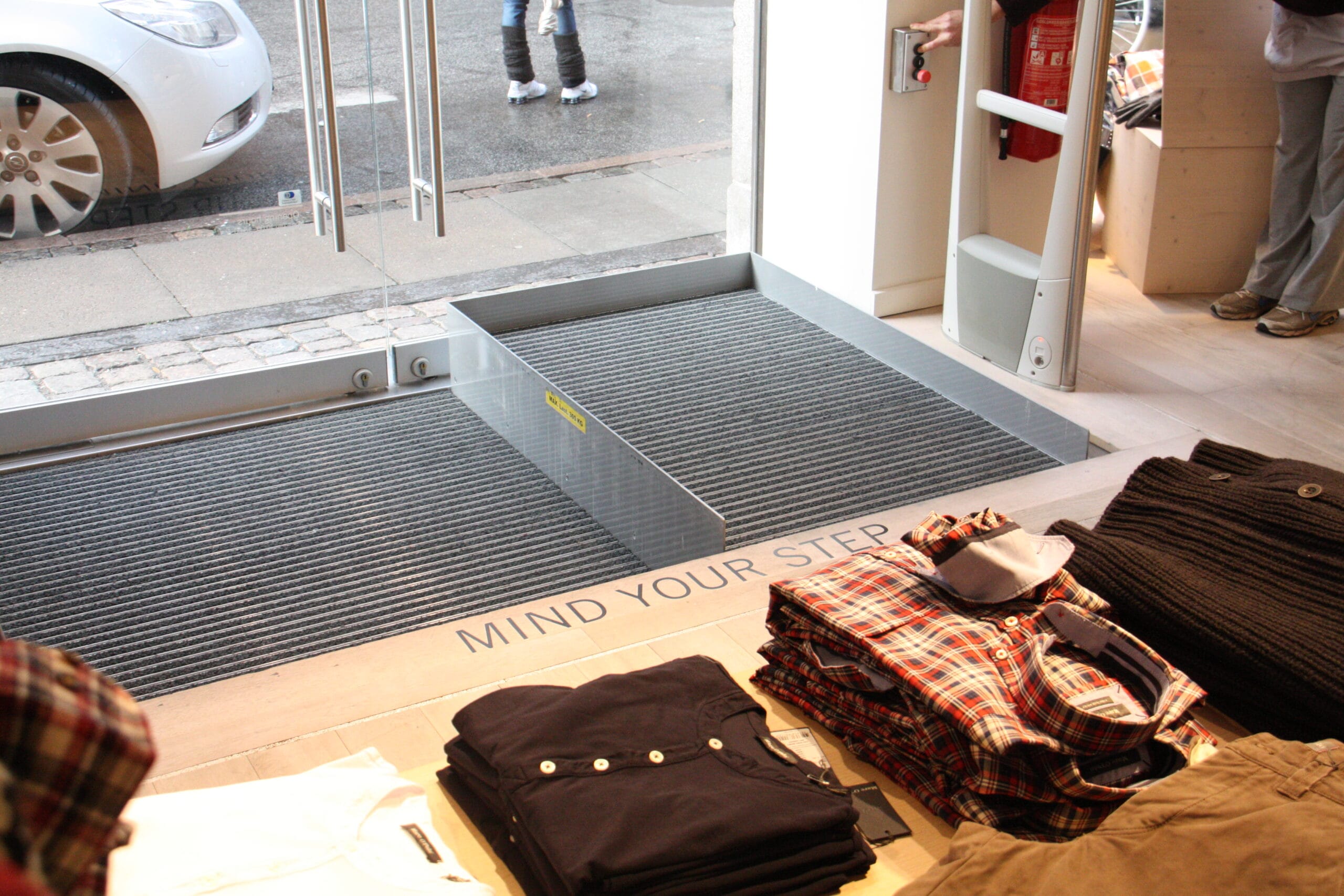

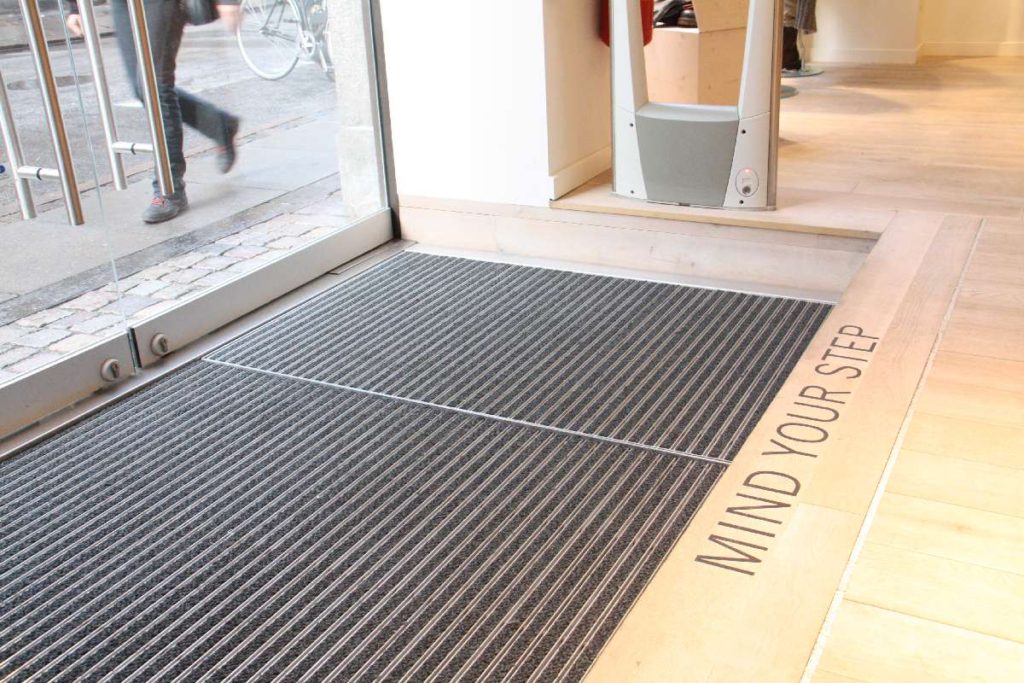

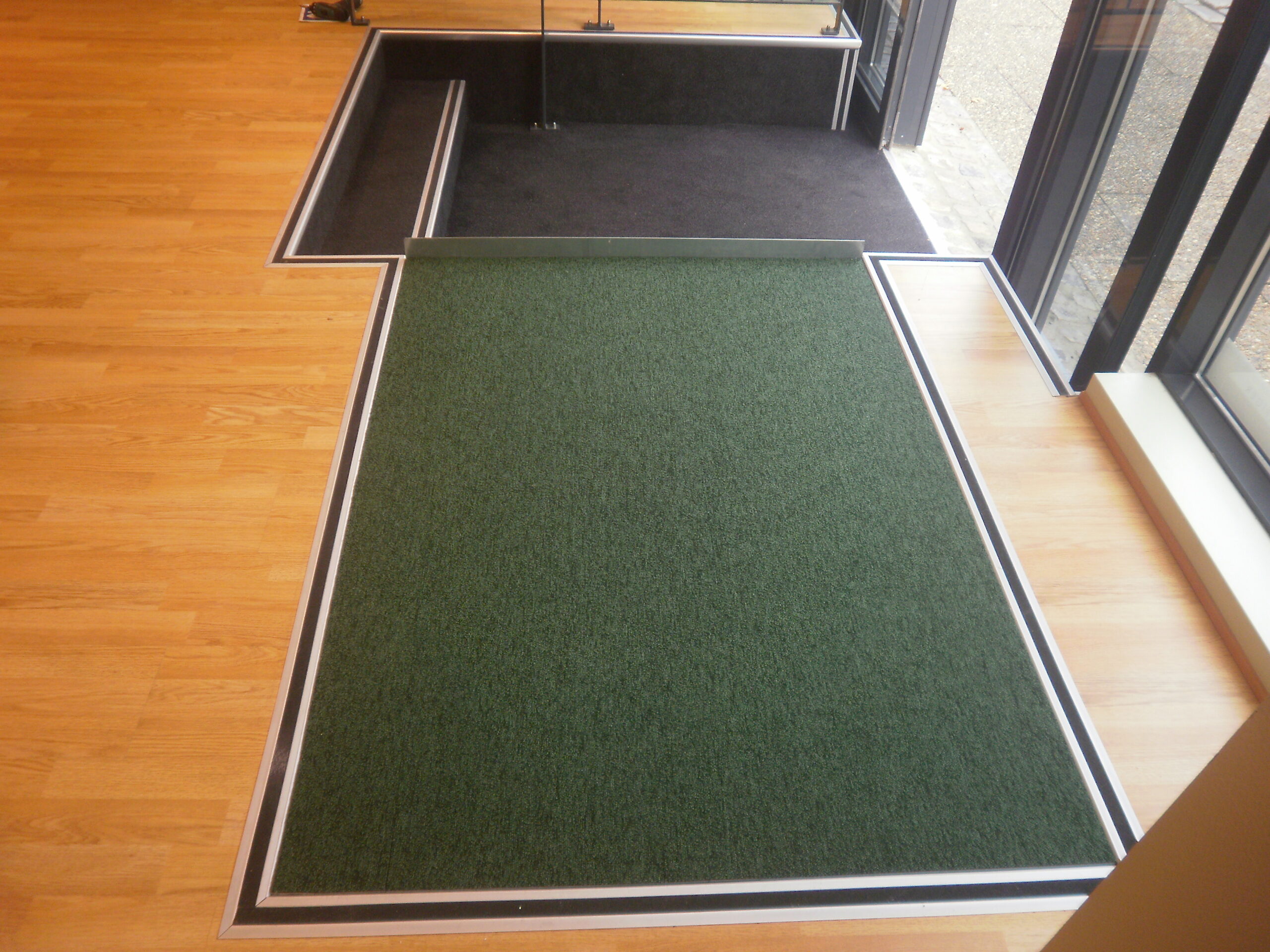

Clever and modern thinking. HDN (hidden) is a short travel lift that sits in the floor and is barely noticeable when not in use. Equally suited to the entrance of an office complex or shop, or serving a split level in your home, HDN is suitable for lifting heights of 50-500mm and can lift up to 400kg. When one of the wall buttons (or remote control buttons) is pressed, a metal upstand appears around the platform creating a mechanical wheel-stop (stopping the user from rolling), following which the lift platform will begin its ascent. HDN can be supplied with a choice of platform coverings or alternatively, the customers own flooring can be added.

Hidden Lift

Technical Details

ApplicationIndoors & Outdoors
Maximum Travel0.5m / 2 Stops
Minimum Platform Size900mm x 1400mm
Maximum Platform Size1100 x 1400mm
Rated load400kg
Pit Depth300mm
Travel Speed0.15m/sec
HeadroomN/A
Entrance Configuration(s)Through Access / Adjacent Entrances
Door Type(s)Single Swing (optional)
Flooring Type(s)Non Slip Rubber / Carpet / Clients Own Material
Lift Colours / FinishesGRIS Sable 900 Grey (std)
Internal FinishesN/A
Fixing Method(s)Pit Mounted
Power Supply Requirement220v Single Phase
ConformityEuropean Machinery Directive
Country of ManufactureDenmark
