Inclined Platform Lifts - Level Lifts

Description

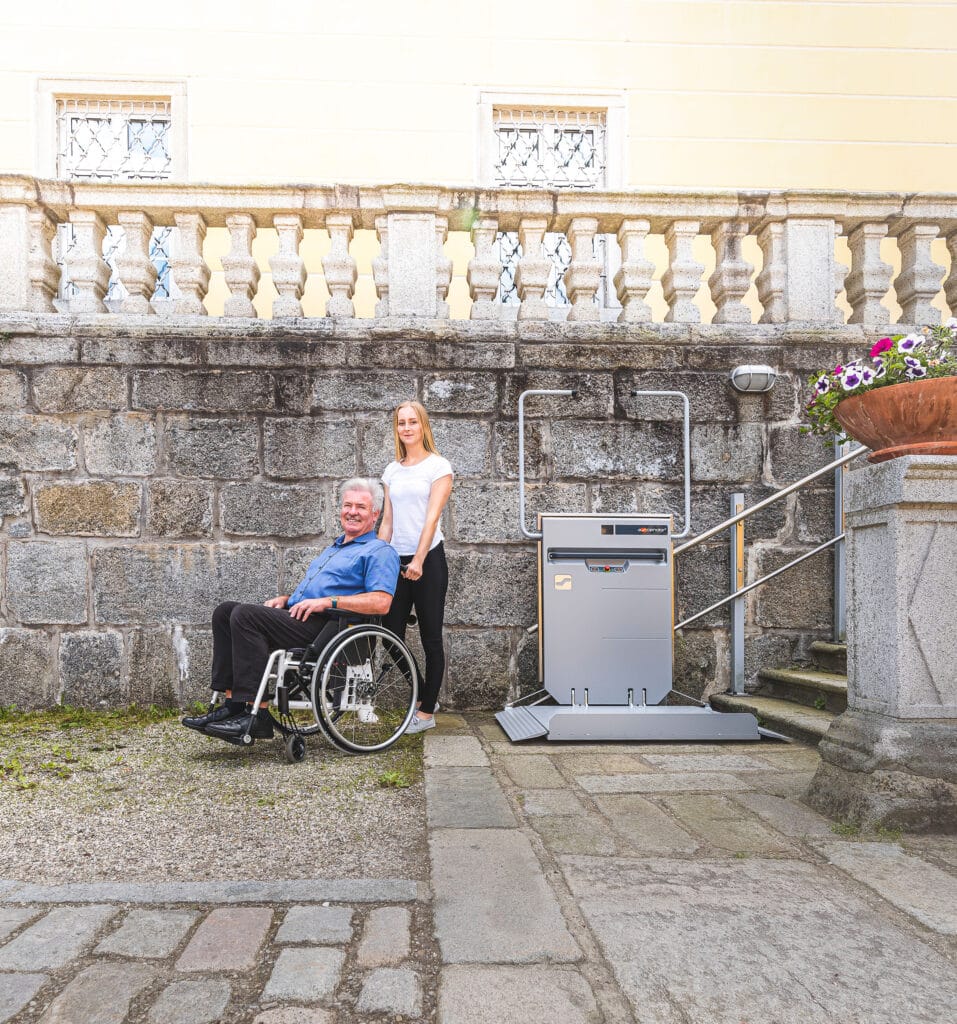

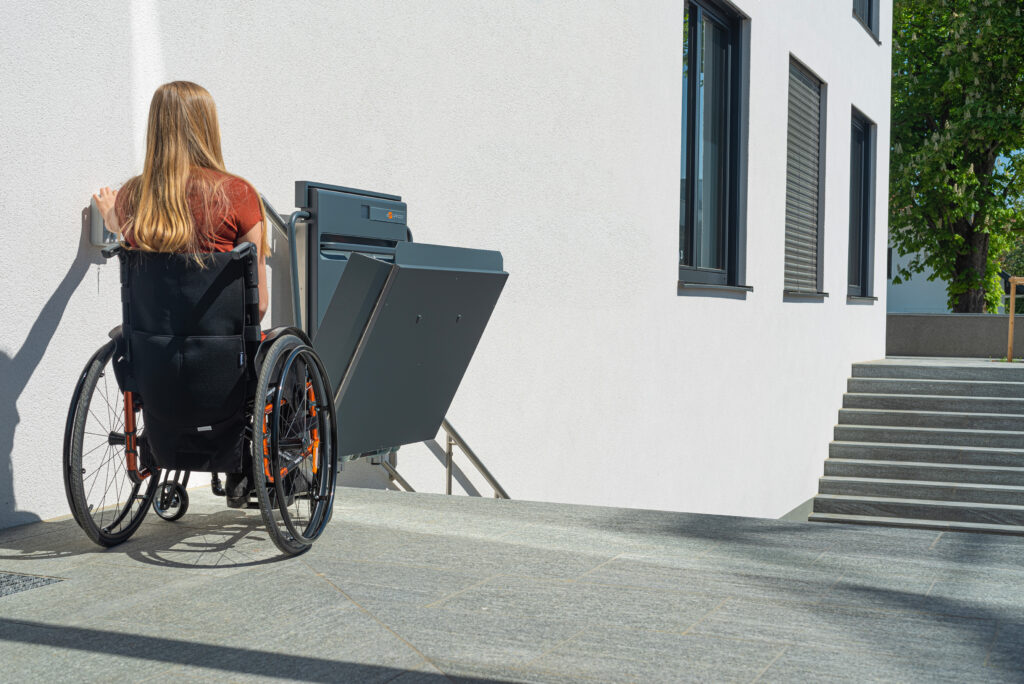

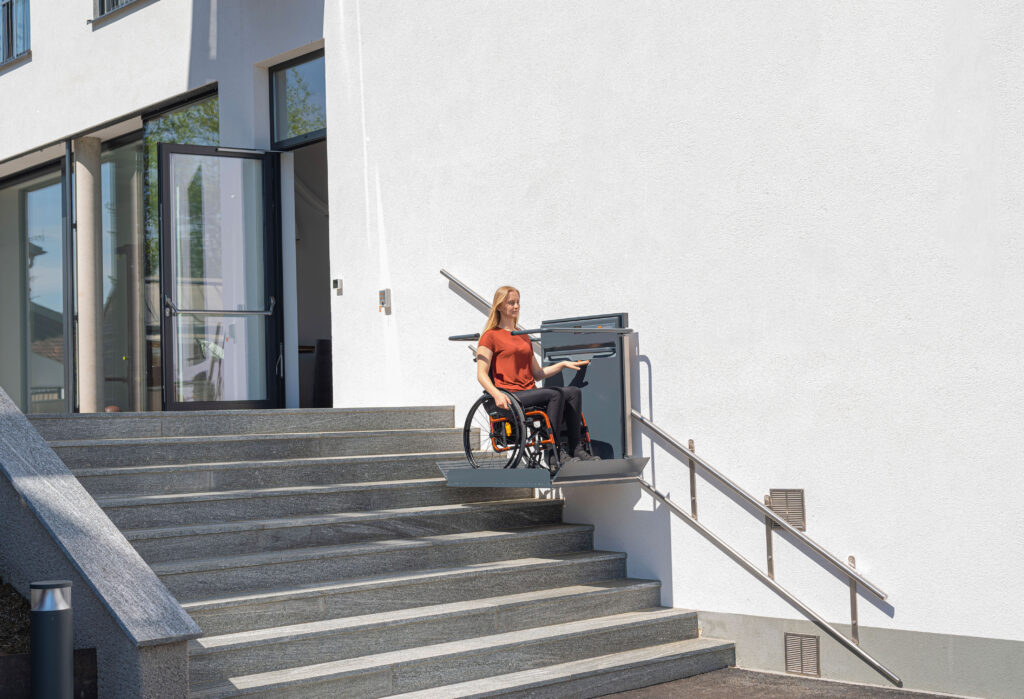

The class redefining PLG7 from Ascendor – is in our opinion THE best platform stairlift available today. The PLG7 proves that it is possible to combine elegance and functionality. The PLG7 platform stairlift runs on stainless steel guide tubes (the top tube can be used as a handrail). When the platform is folded away, the safety arms fold downwards to keep the unit as compact as possible. The lift runs from continually charged batteries meaning that it will continue to function even in the event of a power failure. The operational buttons on the lift are touch sensitive and the landing buttons are wireless meaning that there is no need for unsightly cables or conduits. The on-board digital display unit provides a commentary on the operational state of the lift and provides the service Engineer with all of the information required in order to ensure trouble free operation. Available with a choice of platform sizes, finishes and lifting capacities (230kg or 300kg), the PLG7 leads the way in design and user friendliness.

Straight Rail Platform Stairlift

Technical Details

ApplicationIndoors & Outdoors
Maximum TravelN/A
Minimum Platform Size650mm x 800mm (not Part M Compliant)
Maximum Platform Size800 x 1250mm
Rated load225kg-300kg
Pit DepthN/A
Travel Speed0.11 - 0.15m/sec
HeadroomN/A
Entrance Configuration(s)Through Access / Adjacent Entrances
Door Type(s)N/A
Flooring Type(s)Non Slip
Lift Colours / FinishesRAL 9006 (std) or RAL of Customers Choice
Internal FinishesN/A
Fixing Method(s)Wall Fastened or Stanchion (post) Mounted
Power Supply Requirement220v Single Phase
ConformityEuropean Machinery Directive
Country of ManufactureAustria
