Description

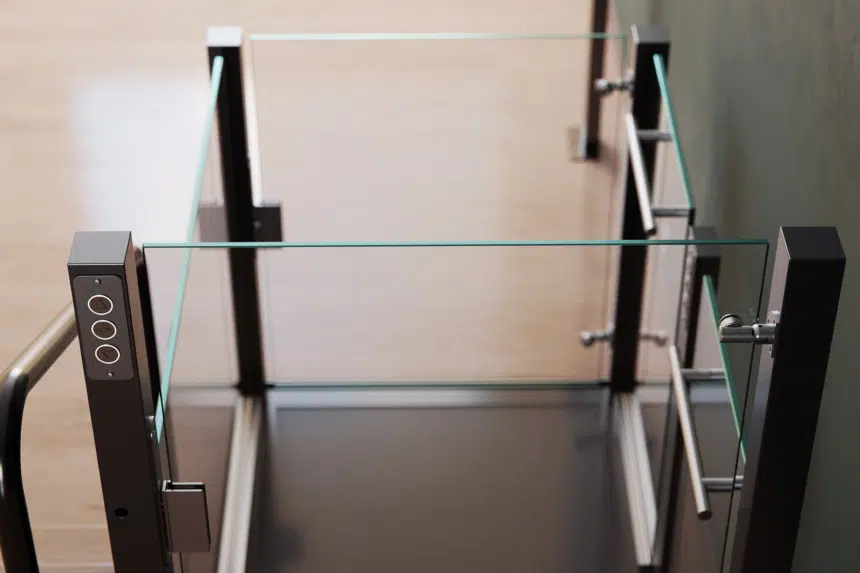

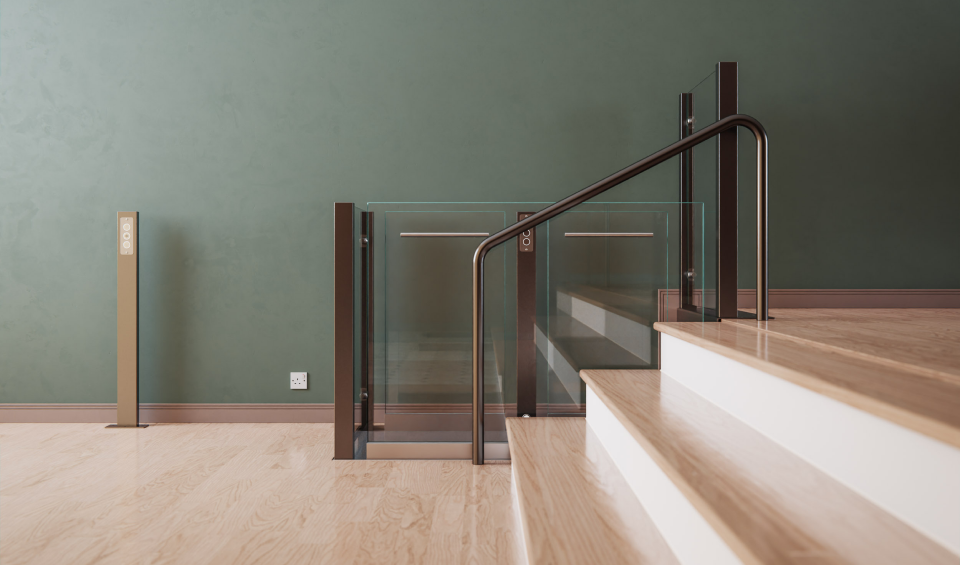

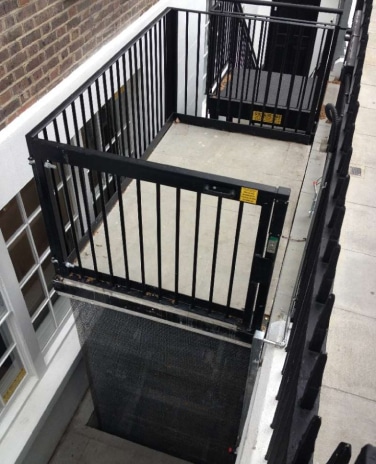

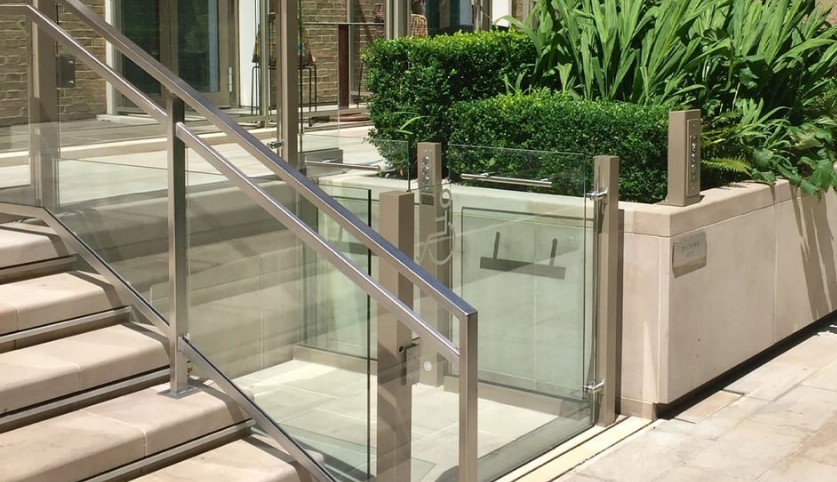

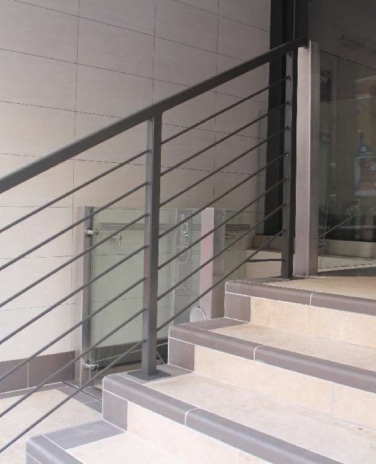

When the environment calls for something a little special, look no further than our Premium Scissor Platform Lifts. We understand that you want a Vertical Platform Lift to compliment its surroundings and as such are able to match your chosen materials (stainless steel, bronze, paint, copper, frameless glass or wrought ironwork). The platform flooring can also be inset with stone or tiles of your choice so as to blend in with the flooring around the lift, whilst maintaining a 500kg lifting capacity. Whether your building is modern and contemporary or steeped in history, we will work with you or your Architect to ensure that your vision is met.

Technical Details

Application:

Indoors & Outdoors

Maximum Travel:

3m / 3 stops

Minimum Platform Size:

1050mm x 1450mm

Maximum Platform Size:

1100mm x 1450mm (BS6440 Compliant) - Larger Platforms available

Rated Load:

500kg

Pit Depth:

Dependent Upon Lifting Height

Travel Speed:

0.15m/sec

Headroom:

N/A

Entrance Configuration(s):

Through Access / Adjacent Access / Same Side Entry

Door Type(s):

Single Swing

Flooring Type(s):

Black Pearl / or Tray to accept customers own flooring

Lift Colours / Finishes:

Stainless Steel or RAL / Metallic Interpron colour of your choice

Internal Finishes:

N/A

Fixing Method(s):

Pit Mounted and at Threshold

Power Supply Requirement:

220v Single Phase or 415v 3 Phase

Conformity:

European Machinery Directive

Country of Manufacture:

Great Britain
