Description

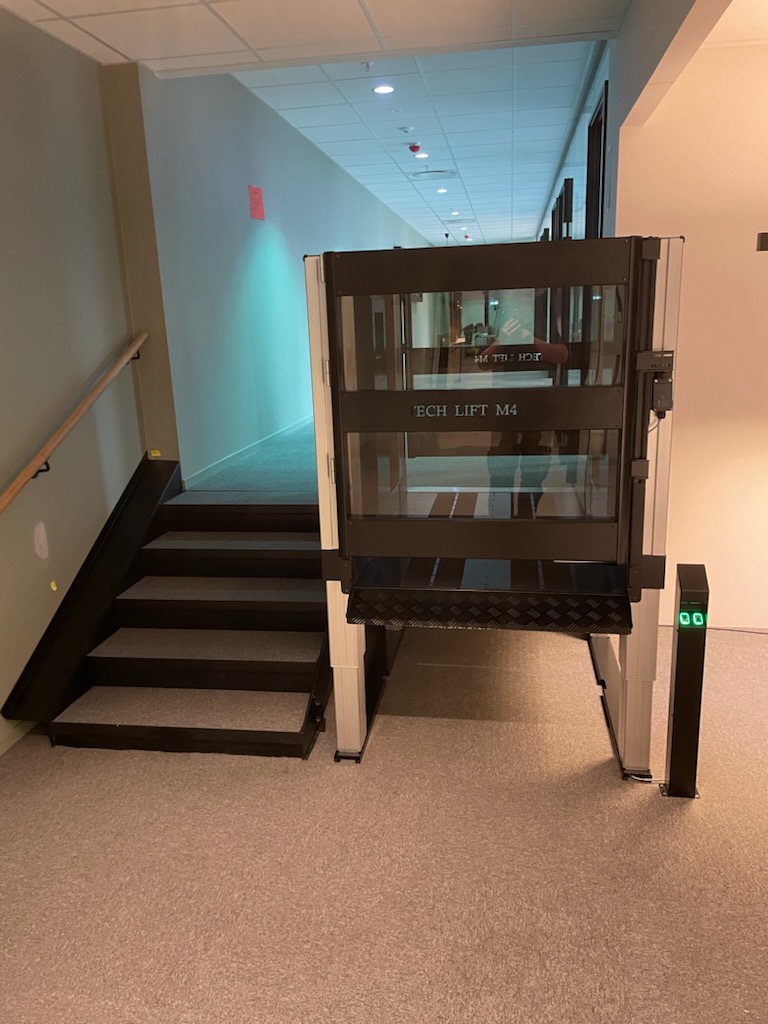

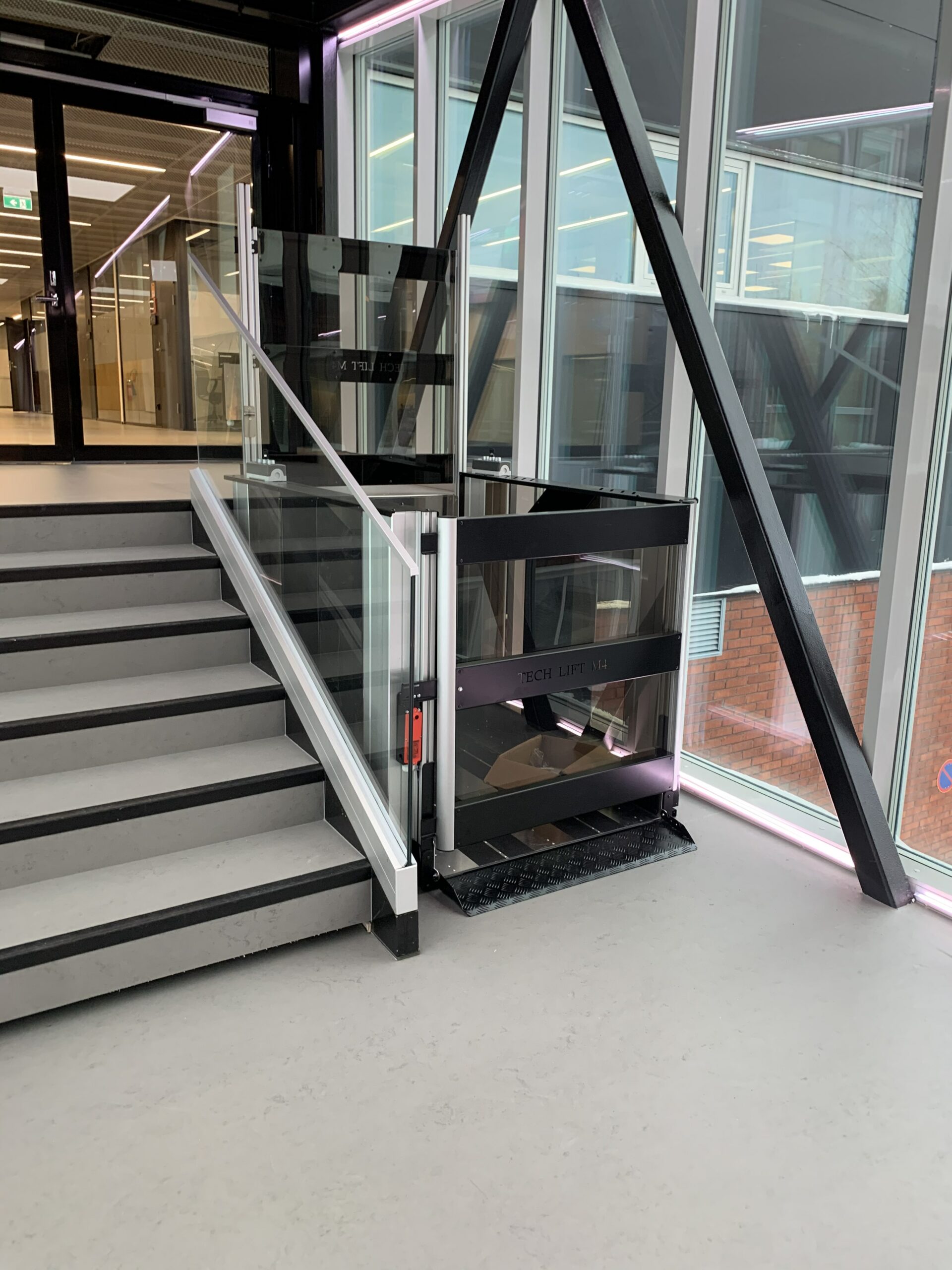

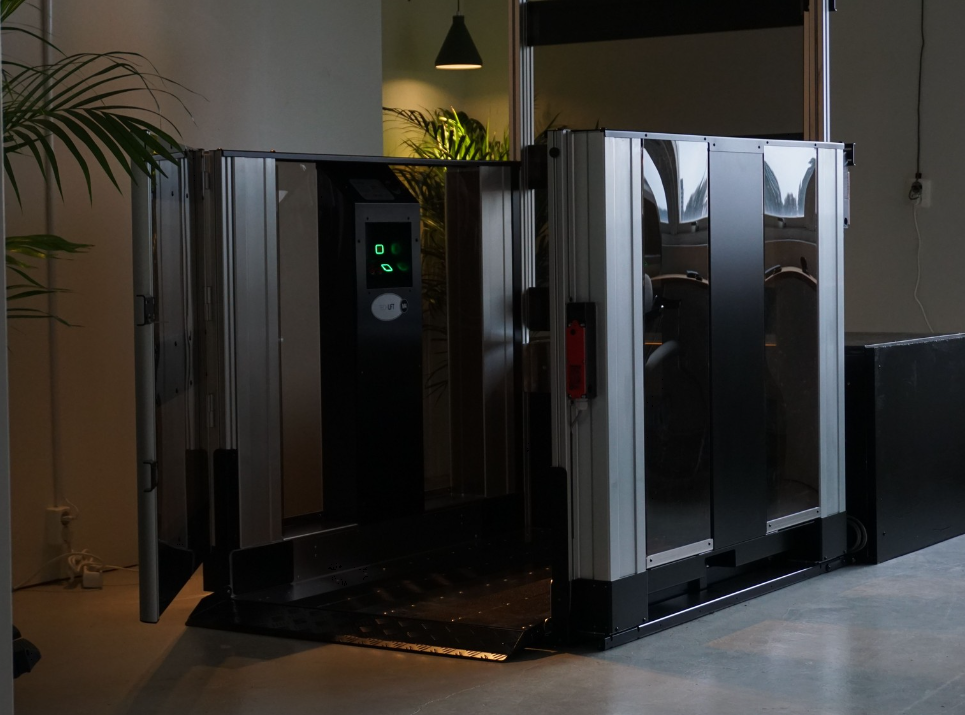

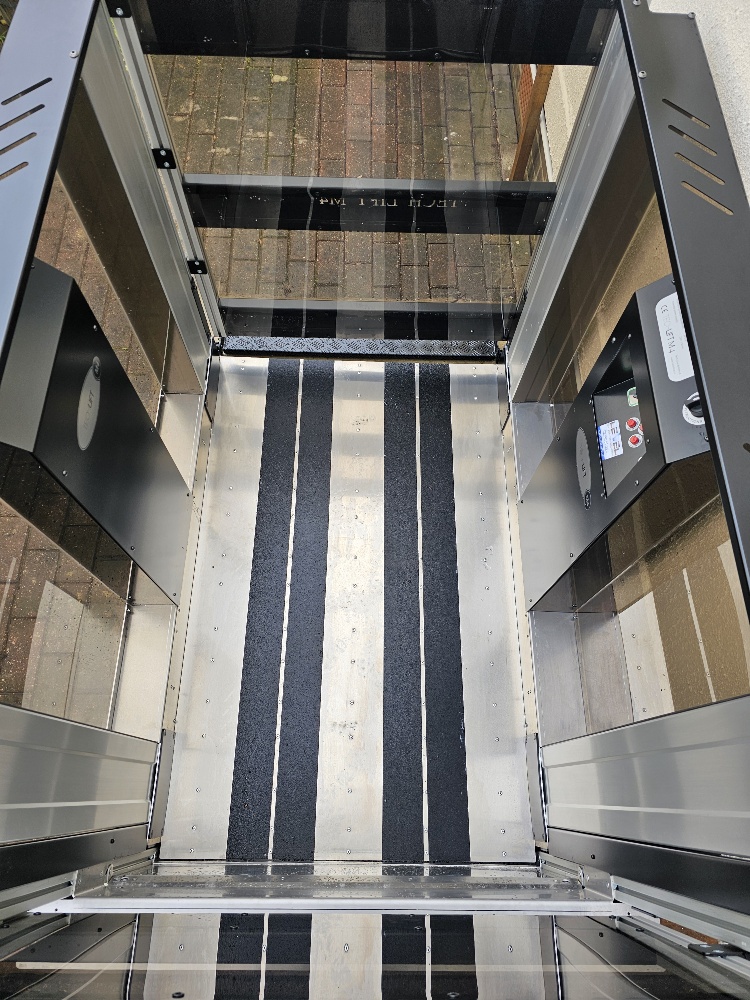

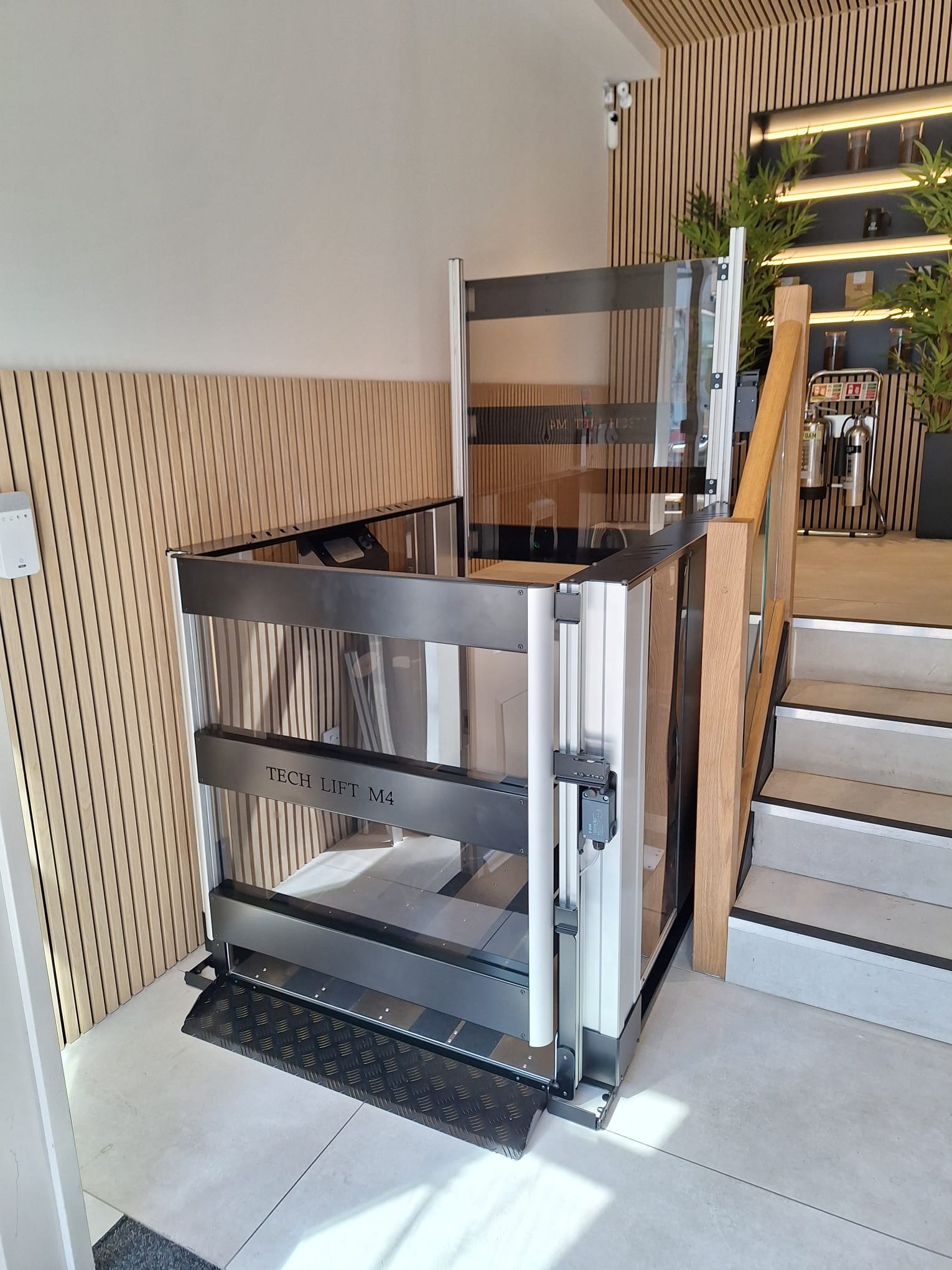

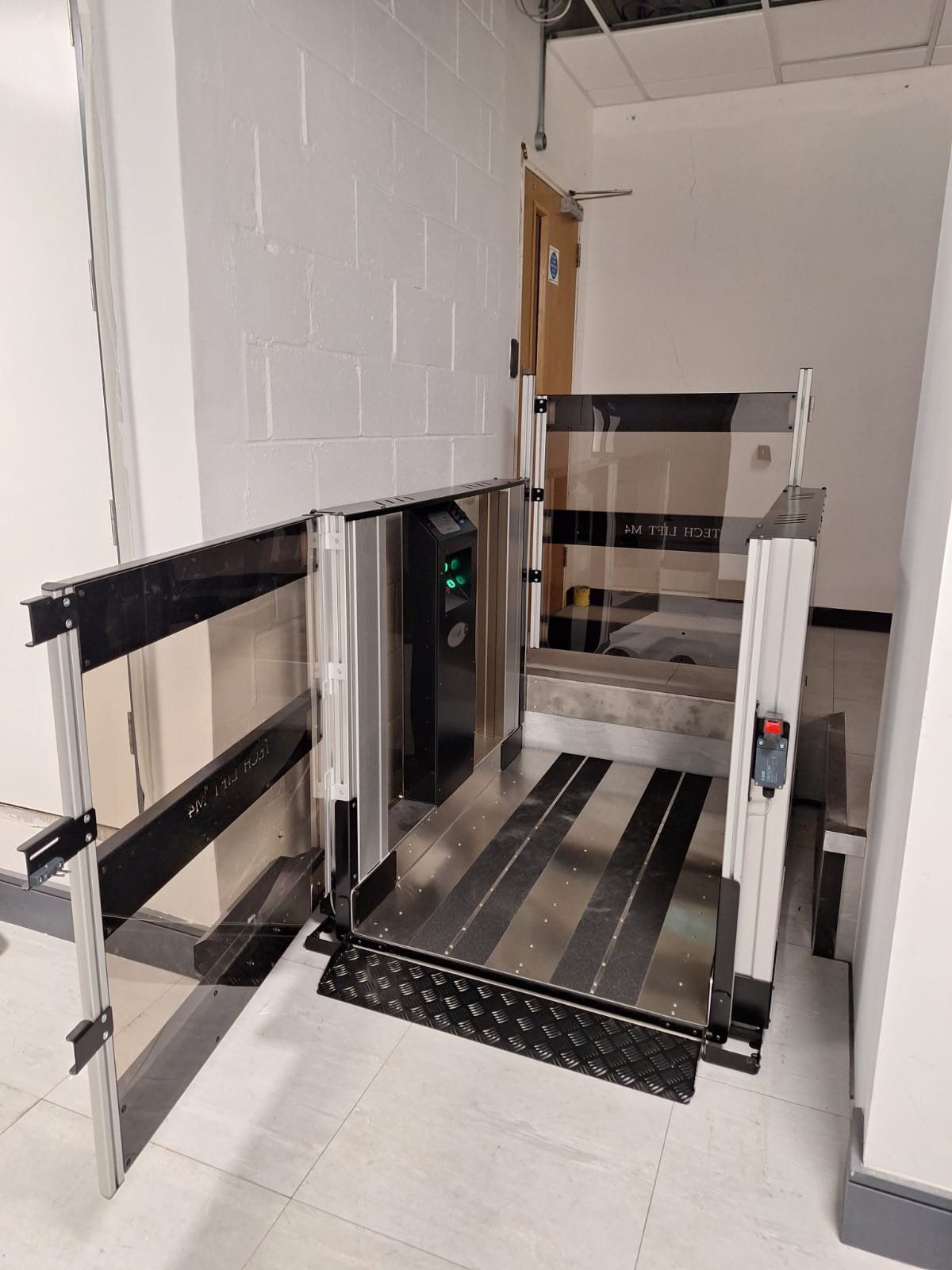

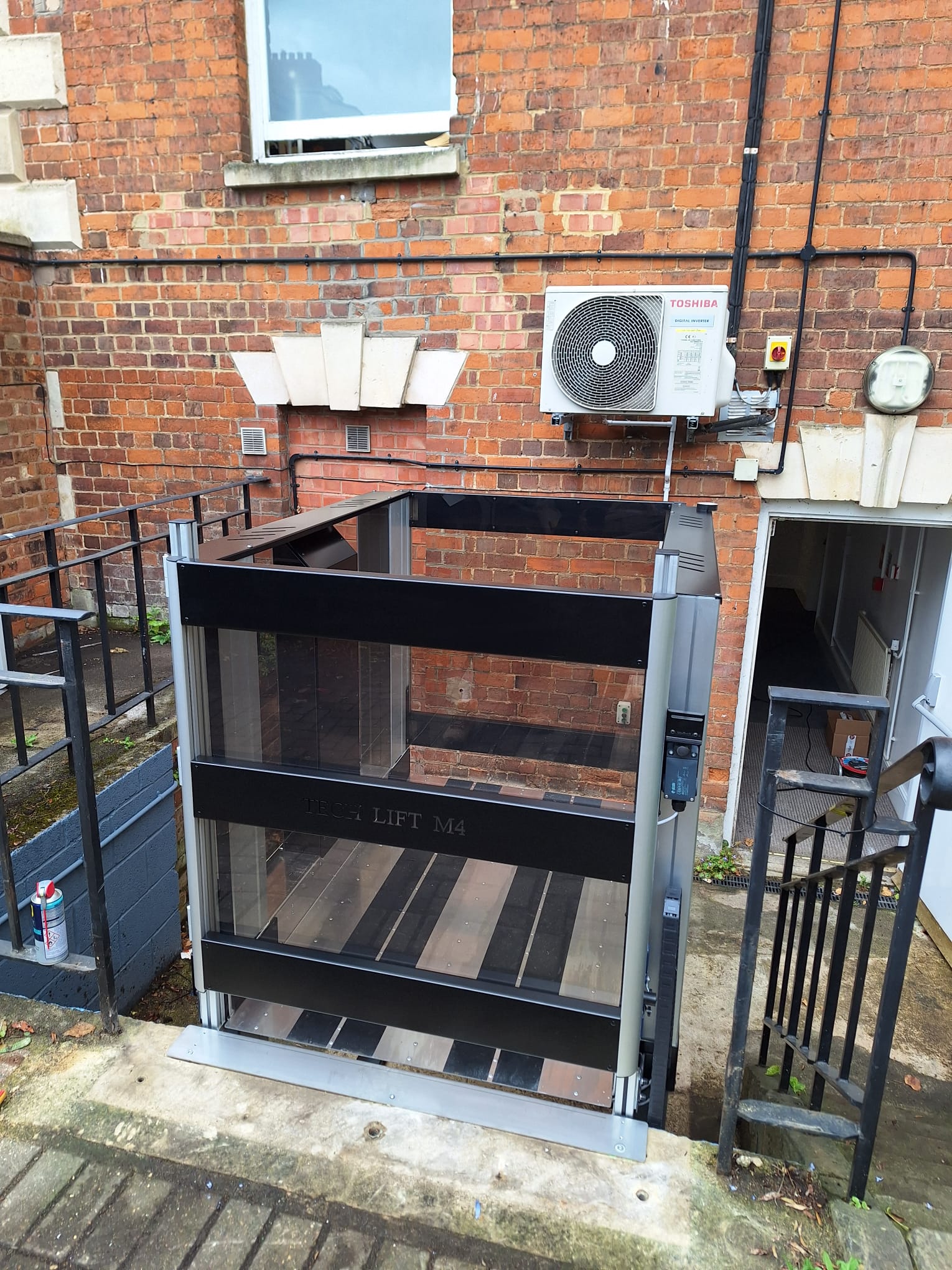

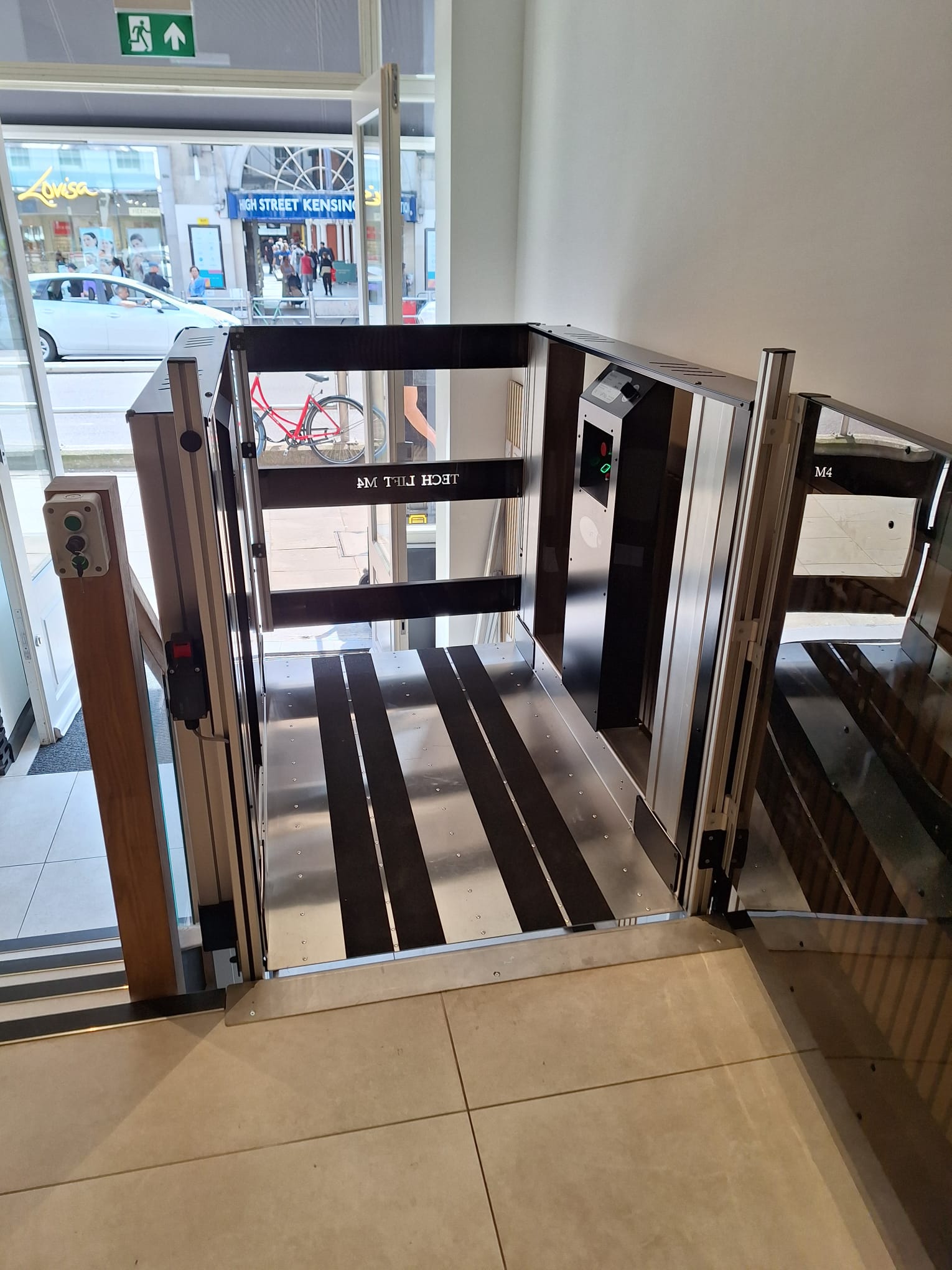

Ideal for either indoor or outdoor applications, the Tech Lift M4 is an extremely cost effective disabled access solution. Available in two platform sizes and with a lifting capacity of 350kg, the Tech Lift M4 will quietly lift you to a maximum height of 1.5 metres. The lightweight aluminium framework is supplied in black as standard, but can be changed to a colour of your choosing, whilst the platform floor is aluminium with anti-slip strips for added reassurance. The lift doors are manually operated as standard and can be made to open automatically as an optional extra.

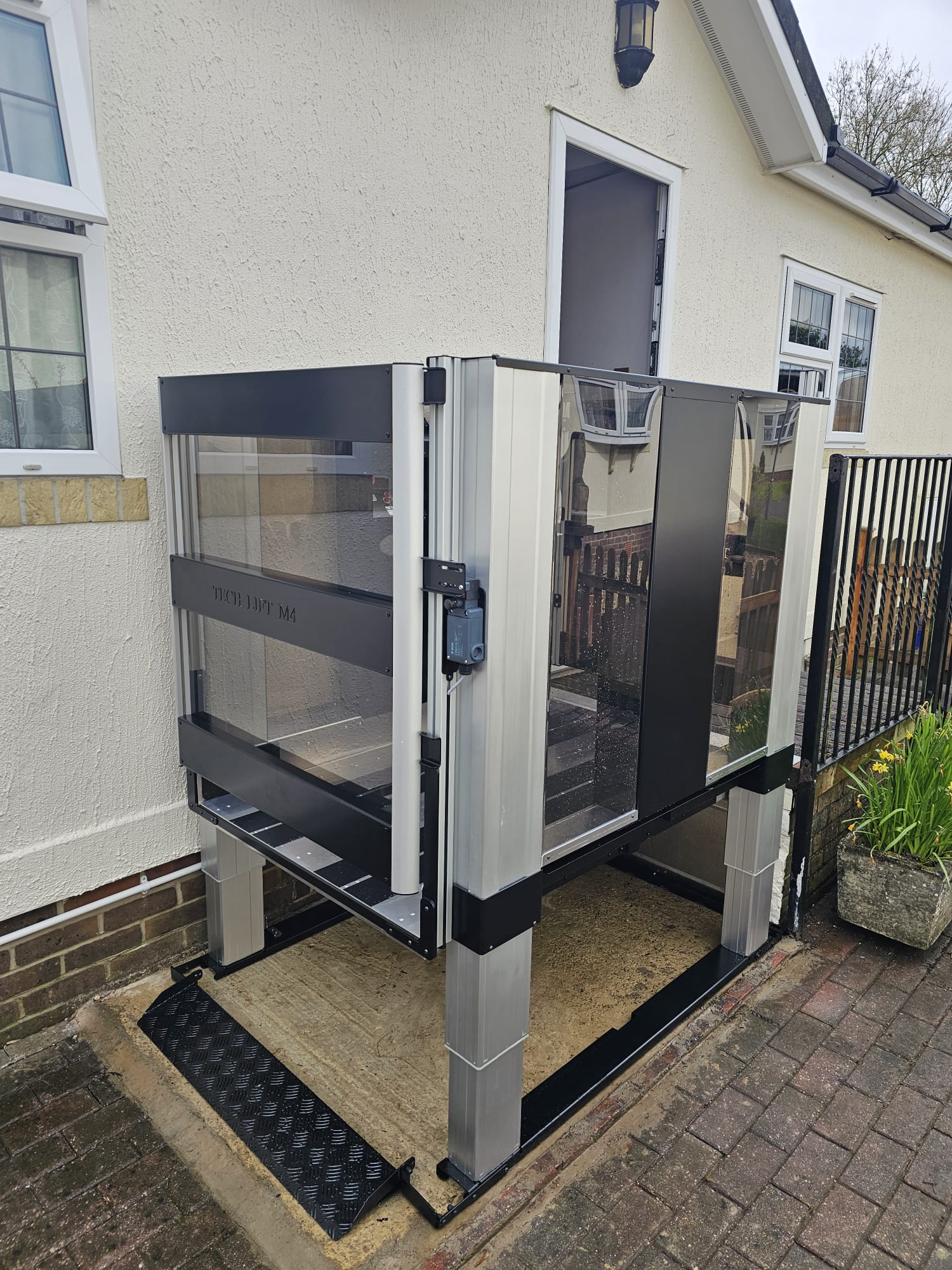

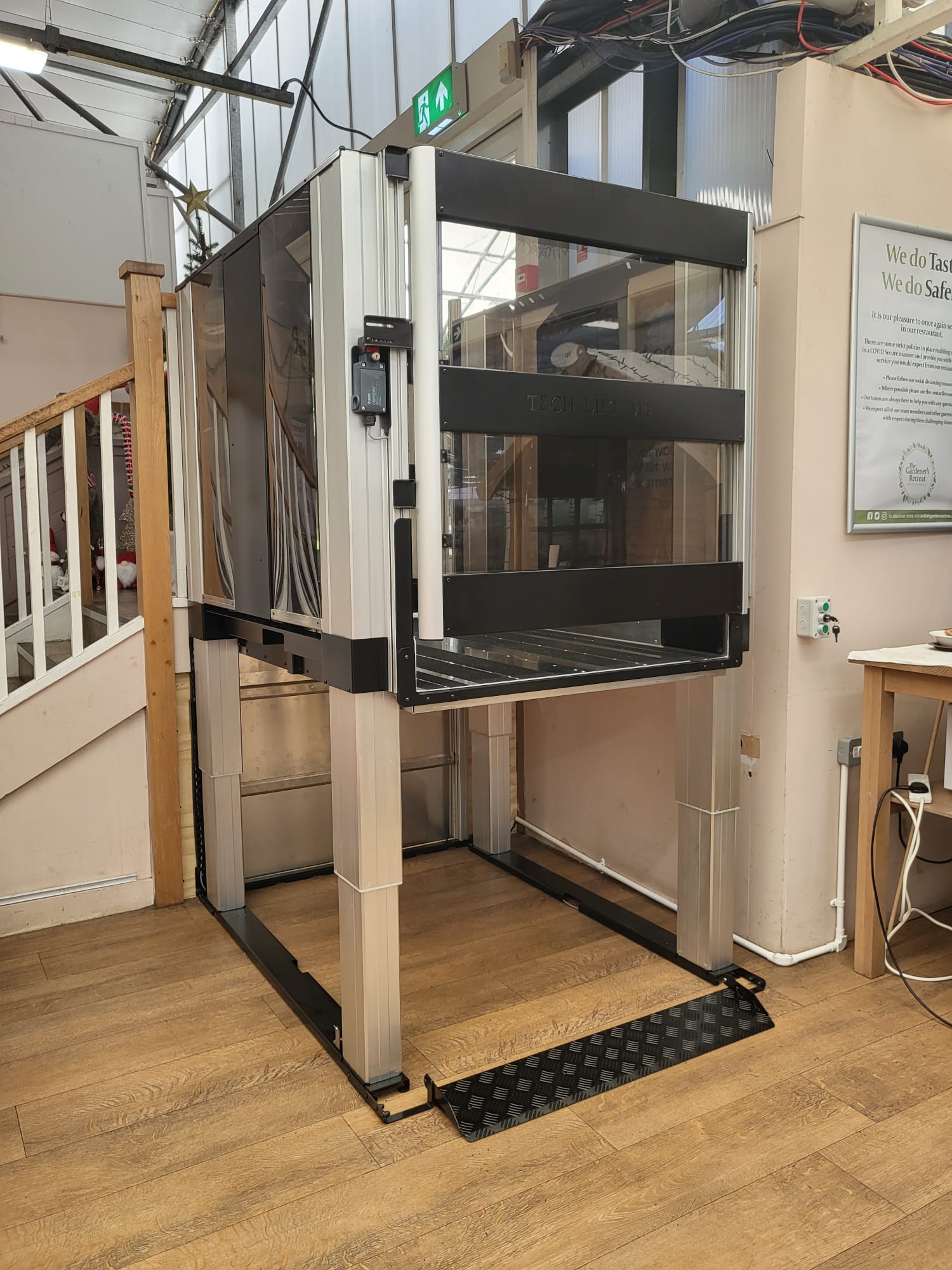

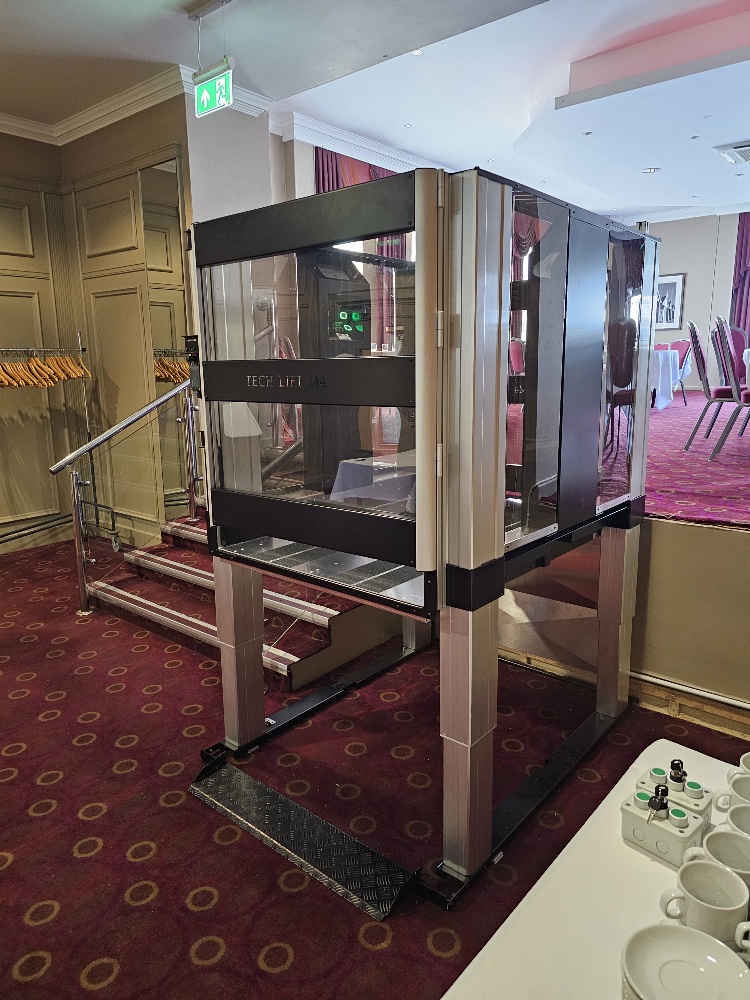

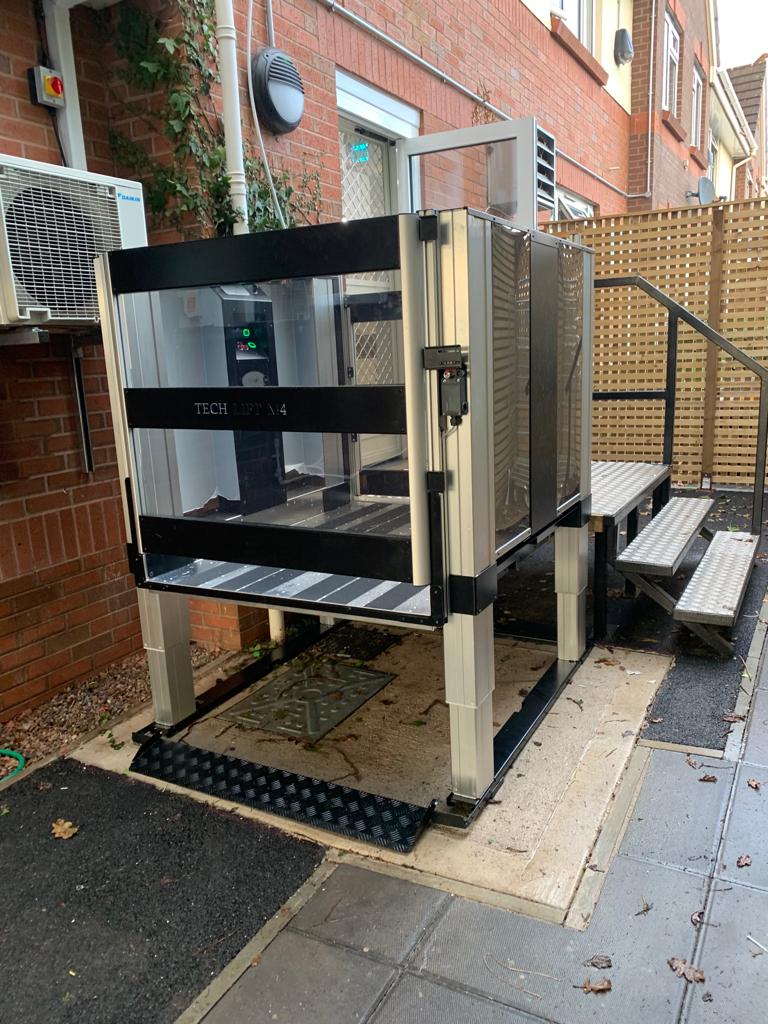

Minimal floor space is required for the Tech Lift M4 thanks to the lifting legs that push the lift upwards. This method negates the need for unsightly lifting columns and eradicates the need for any specialist builders’ work.

The Tech Lift M4 is available from stock (subject to availability) and so delivery is generally much faster than other lifts of this type. Thanks to the modular design, Tech Lift M4 can be installed in just a few hours.

Tech Lift M4

Technical Details

ApplicationIndoors & Outdoors
Maximum Travel1.5m / 2 stops
Minimum Platform Size900mm x 1400mm
Maximum Platform Size1100 x 1400mm
Rated load350kg
Pit Depth35mm or floor mount with ramp
Travel Speed40mm/sec max
HeadroomN/A
Entrance Configuration(s)Through Access
Door Type(s)Single Swing (Manual or Automatic
Flooring Type(s)Aluminium with anti-slip strips
Lift Colours / FinishesBlack RAL9005 (std) or RAL colour of your choice
Internal FinishesN/A
Fixing Method(s)Floor Mounted and at Threshold
Power Supply Requirement220v Single Phase, 6 amp
ConformityEN-81-41:2010
Country of ManufactureSweden
