Description

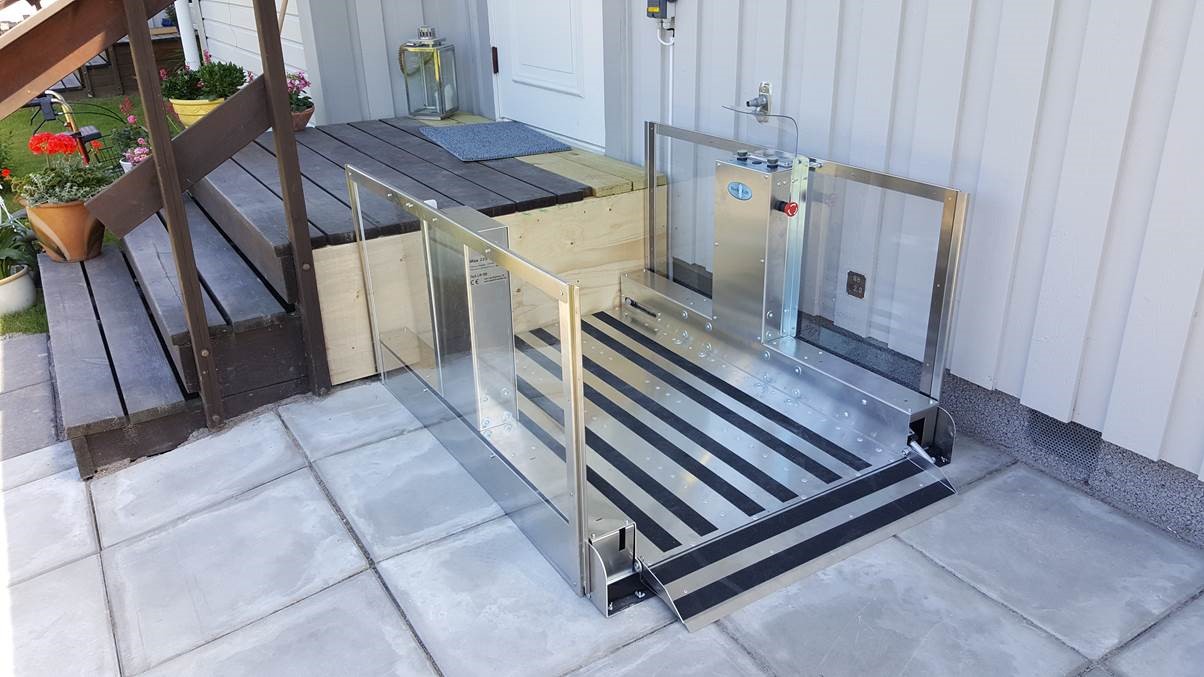

The perfect solution for providing disabled access to split levels, raised patios, mobile homes etc. With a lifting height of up to 500mm high and a lifting capacity of 250kg this little Steplift typically takes 1-2 hours to install and can easily be relocated / reused in another location. The Tech Lift 500 steplift is constructed of aluminium, is extremely rigid and yet weighs a mere 51kg.

Ultra Light Weight Open Style Lift

Technical Details

ApplicationIndoors & Outdoors
Maximum Travel0.5m / 2 stops
Minimum Platform Size800mm x 1250mm
Maximum Platform Size800mmx 1250mm
Rated load250kg
Pit DepthN/A - Powered Ramp on Platform
Travel Speed25mm/sec
HeadroomN/A
Entrance Configuration(s)Through Access
Door Type(s)Single Swing
Flooring Type(s)Non Slip
Lift Colours / FinishesAluminium & Stainless Steel (natural)
Internal FinishesN/A
Fixing Method(s)Floor Mounted
Power Supply Requirement220v Single Phase
ConformityEuropean Machinery Directive
Country of ManufactureSweden
