Description

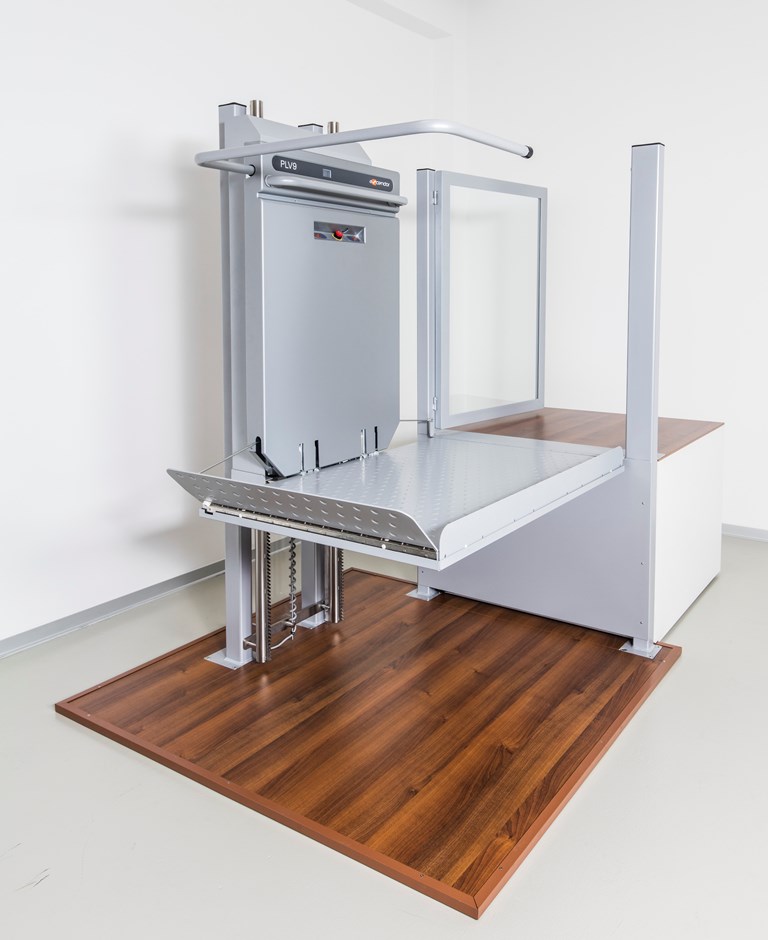

The PVL9 Vertical Platform Lift combines minimalist design with premium quality in one easy to install product. This short travel vertical lift (or Steplift) is of the same DNA as the award winning Ascendor Platform Stairlift range. The platform and barrier arms can be folded away when not in use, freeing up valuable floor space. A safety gate is provided at the upper landing and the wall buttons are wireless (so no unsightly cables or conduits on show). The combination of platform sizes and configurations, along with a choice of finishes means that the PLV9 can be easily adapted to suit any environment. The clean lines and subtle touches such as touch sensitive platform buttons and digital display leave the owner in no doubt that they have purchased a product of quality.

Vertically Rising

Technical Details

ApplicationIndoors & Outdoors
Maximum Travel1m
Minimum Platform Size800mm x 800mm (not Part M Compliant)
Maximum Platform Size800 x 1250mm
Rated load225kg
Pit DepthAutomatic Ramps onboard
Travel Speed0.11 - 0.15m/sec
HeadroomN/A
Entrance Configuration(s)Through Access / Adjacent Entrances
Door Type(s)Single Swing
Flooring Type(s)Non Slip
Lift Colours / FinishesRAL 9006 (std) or RAL of Customers Choice
Internal FinishesN/A
Fixing Method(s)Wall Fastened or Frame Mounted
Power Supply Requirement220v Single Phase
ConformityEuropean Machinery Directive
Country of ManufactureAustria
